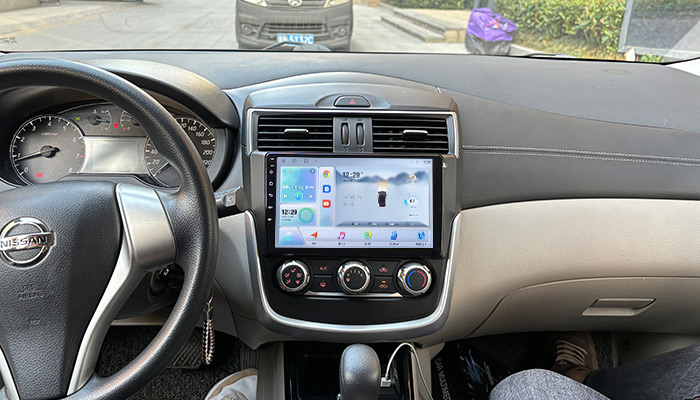

When installing a android touch screen for car, one of the most crucial steps is properly grounding the system. This process involves connecting a ground wire, which is fundamental for both safety and functionality. In this blog, we will explore why grounding is important, where to connect the ground wire, and how to ensure a secure and effective ground for your car audio touch screen.
Grounding is the process of connecting electrical circuits to a reference ground point, which is typically the chassis of the vehicle. This reference point is at the same electrical potential as the earth, hence the term 'grounding'. The ground wire serves as a safe path for electricity to follow in the event of a short circuit or electrical fault.
- Minimize the risk of electrical shock
- Reduce the likelihood of damage to the car audio with navigation from voltage spikes
- Prevent unwanted noise such as engine whine or alternator whizz, which can interfere with stereo radio quality
- Ensure the system functions correctly and reliably
In most car stereo systems, the ground wire is black. However, it's always best to consult the wiring diagram for your specific touch screen radio with android auto to confirm the color and position of the ground wire.
5、Choosing the Ground Connection PointThe ground connection point should be a metal part of the vehicle's frame or chassis. It's essential to choose a location that is free of paint, rust, dirt, and grease to ensure a good electrical connection. The connection point should also be close to the stereo to prevent potential ground loop issues, which can cause universal android car stereo.
（1） Locate a Suitable Ground Point:
As mentioned, this should be a clean, bare metal surface on the chassis or frame of the vehicle.
（2）Prepare the Surface:
If necessary, use sandpaper to remove any paint or rust from the area where you will attach the ground wire. The goal is to have a metal-to-metal contact.
（3）Secure the Connection:
Use a ring terminal at the end of the ground wire, crimped securely in place. This terminal will then be attached to the grounding point using a screw or bolt. Ensure that the connection is tight and secure.
（4）Test the Connection:
Once connected, it's a good practice to check the ground with a multimeter set to measure resistance. You should see a very low resistance when one probe is on the ground terminal and the other is on the negative terminal of the battery.
（5）Route the Wire Properly:
The ground wire should be routed away from any power cables to avoid potential noise and interference. Secure the wire along its path to prevent it from moving around.
- Do not ground the stereo to a point that has other devices grounded to it, as this can introduce noise.
- Avoid using the ground terminal on the battery for the carplay audio system, as this can create a ground loop.
- Never leave the ground wire loose or improperly attached, as this can lead to a malfunctioning android automotive radio or even a fire hazard.
Grounding your car gps audio and video system is a task that should be approached with care and attention to detail. By following the proper steps and ensuring a clean, secure connection to the vehicle's chassis, you can enjoy a safely installed system with optimal performance.
Remember, if you're ever unsure about the grounding process or any other aspect of touch screen radio with dvd player installation, it's best to consult with or hire a professional. Safety and functionality are paramount, and a well-grounded multimedia car player will provide you with years of enjoyable audio experiences on the road.
